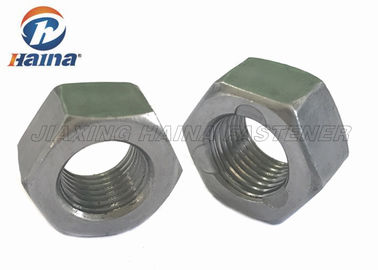

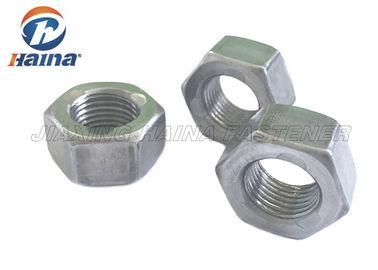

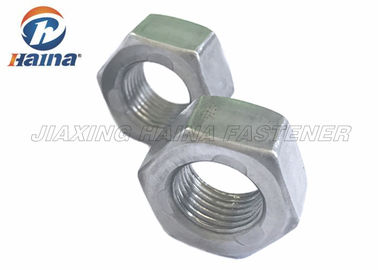

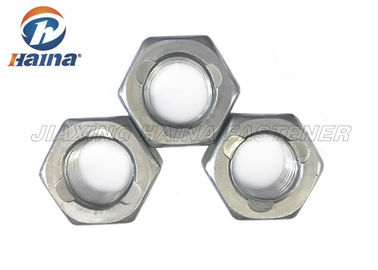

Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish

Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish

    • Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish
    • Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish
    • Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish
    • Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish
  • Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish

    รายละเอียดสินค้า:

    Place of Origin: Jiaxing, CN
    ชื่อแบรนด์: HNF
    ได้รับการรับรอง: ISO9001:2008
    Model Number: 9/16"-18 3/8"-24

    การชำระเงิน:

    Minimum Order Quantity: 500 kg
    ราคา: $0.0002 piece
    Packaging Details: Common export packing. Cartons+Pallets, or customized packing. Bag Packing
    Delivery Time: 5-25 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 600 tons per month
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Product: HexLock Nuts Head Drive: Hex Nut
    Standard: ASTM Surface: Plain Finish
    Grade: Gr2 G5 Head: Hex Head
    Torque: As standard Material: Carbon Steel. Mild Steel
    Inspection: 100%QC Steps Inspect Before Shipment Service: OEM

    Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish


    Description:


    Top Hex Lock Nuts are used to lock. Consistent torque at tension allows for reliable joint integrity.

    The top lock nuts are manufactured from low-carbon steel to meet Grade A performance specifications. These kinds of prevailing torque lock nuts are designed for use in non-critical applications with Grade 2 or Grade 5 hex bolts, or other customized bolts.

    The lock nuts can be supplied with various of finishes or customer-specific coatings.

    There are many kinds of hex top lock nut.
    Prevailing torque differentiates a locknut from a free spinning nut based on a value of how much torque is required during installation before clamp loading. For example, on a nylon-insert nut, it is the torque needed to overcome the resistance of the nylon dragging across the mating thread. This torque value is usually not very high relative to final installation torque. Tolerance ranges for torque are specified in some standards such as (ISO, DIN, IFI, ASME, SAE, AN-, MS-, NAS- NASM-). We attach the torque table below in specification.

    A lock nut is a kind of nut which resists loosening when properly threaded onto a bolt. Nut and bolt fasteners are much common in industry and home applications. Many are universal in application, while others work best under certain circumstances.

    We also have nylock hex nut, and other kinds lock nuts.

    Lock nut is widely used in machinery and other industries.



    Specification:



    Name 3/8"-24, 9/16"-18 Carbon Steel Grade 2 Plain Three point Top HexLock Nuts
    Size 3/16-1/2"
    Finish plain, Black, Zinc Plated
    Head Type Hex
    Material Carbon steel, MS, Mild Steel, 1008
    Grade 4.8,8.8,10.9,12.9.etc
    Standard GB, DIN, ISO, ANSI/ASTM, BS, BSW, JIS etc
    Non-standards OEM
    Samples Free.
    Package Bulk in master cartons, then on pallets, or according to customers' requirement.
    Payment T/T, L/C



    Prevailing Torque of the hex top lock nut:



    Prevailing Torque -- lb.in



    First Install Max.

    First Removal Min.

    Third Removal Min.

    9/16"-18

    300

    30

    10

    3/8"-24

    110

    12

    4



    Application:

    The Three point Top Hex Lock Nuts is mainly used for fastener one thing. And it has requirement of the torque, and we will control the torque for customers. We produce the lock nut with standard torque.



    Advantages:


    1. Rich experience
    2. Well equiped with complete facilities
    3. High quality
    4. Strict quality control system
    5. Best services
    6. Customer's design

    7. Good package



    Grade 2 Plain Three point Top Hex Lock Nuts 3/8-24 9/16-18 Plain Finish
