B1306 Landmark Plaza No.1238 Hongxing Road JiaXing, ZheJiang, China 314001 | tony@hainafastener.com |
รายละเอียดสินค้า:
การชำระเงิน:
|
สินค้า: | Torx ไม้ Chipboard CSK และ Flat Head Screw | ชนิด: | Torx Screw |
---|---|---|---|
ขนาด: | 3.5,4.8,5.5,6.3 | วัสดุ: | เหล็กกล้าไร้สนิม 304 316 A2 A4 |
ข้อมูลจำเพาะ: | T10 T15 T20 T25 | ประเภทหัว: | หัวแบน |
ขับรถ: | torx | เส้นหัวข้อ: | แถวเดียว |
ขว้าง: | เธรดหยาบ | ||
แสงสูง: | Black Self Tapping Screws,Pan Head Framing Screws |

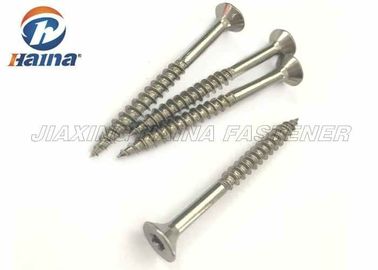

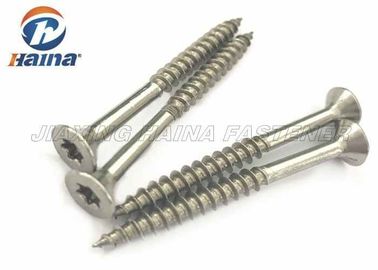

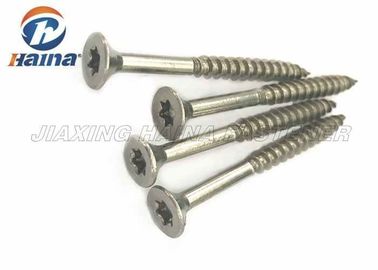

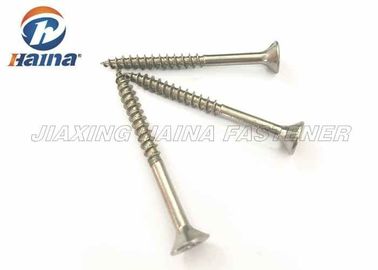

Security Stainless Steel Torx Wood Chipboard CSK and Flat Head Screw Coarse Thread Half Thread
Description:
The CSK and Flat head chipboard screw full thread are widely used in furniture nad building.
Chipboard screws were invented to fasten low, medium and high density chip board. Because chipboard has no natural grain to resist the screw from withdrawing, these screws often have grippers around their head called nibs. The screws are skinny to avoid splitting with a coarse grain to lock the board in place. Many of these screws are self tapping, so there is no need to bore holes first. Some even have special ridges around their heads that remove the chipboard material when countersinking.
The screws have many available lengths. And the different lengths can be used to fasten chipboard in variety of applications. Smaller screws may be used to fasten hinges to chipboard cabinetry. Very long screws may be used to butt chipboard to chipboard when making cabinets. Average screws are 1.5 inches (around 4 cm), small screws are usually ½ inches (around 1.5 cm), longer screws are 5 inches (around 13 cm).
Different head shapes and materials of chipboard screws are common as well. The most common screws are made out of stainless steel, zinc, yellow zinc, brass or black oxide. Popular heads are either pan, flat or bugle, and popular gauges are 8 and 10. Screws may have Phillips or square screw drives.
Stainless steel is generally divided into SS304 SS316 A2 A4. Stainless steel has strong corrosion resistance. Mechanical properties of stainless steel screws stronger than steel screws.
Specification:
Name |
Security Stainless Steel Torx Wood Chipboard CSK and Flat Head Screw Coarse Thread Half Thread |
Standard |
International Standard |
Head Type |
Flat Head |
Thread Syste |
Metric Thread |
Material |
Stainless steel A2,304 |
Head Drive |
Torx |
Other name |
Six Lobe Security Screw |
Usage |
Security, anti thief |
Packaging |
25 carton + pallet. Or small box+cartons+pallet |
Unit: mm | |||||
Head Diameter | 6 | 7 | 8 | 8.8 | 9.7 |
Thread Diameter | 3 | 3.5 | 4 | 4.5 | 5 |
Thickness | 1.8 | 2.1 | 2.4 | 2.7 | 2.9 |
Bit No. | T10 | T15 | T20 | T20 | T20 |
Application:
The chpboard screws are often used for cabinetry and for flooring, and can be found in most large hardware stores.
Easy to use, the use of a special wrench can be installed without the need for special and complex tools, manufacturers will be equipped with special tools to customers, so there is no need to worry about installation problems.
Elegant appearance.
Advantages:
1. Reply you at any time.
2. Professional manufacturer for screw
3. Customized design is available. ODM&OEM
4. Various materials are available as per your request
5. OEM workable
6. Factory direct price and on time delivery
7. Prompt delivery.
8. Various sizes are available.
